%matplotlib inline

Matplotlib is building the font cache; this may take a moment.

import numpy as np
from sys import path

import matplotlib.pyplot as plt
import matplotlib as mpl
mpl.rcParams['lines.markersize'] = 6
mpl.rcParams['scatter.marker'] = '.'

path.append('../../')
import derivative

def plot_example(diff_method, t, data_f, res_f, sigmas, y_label=None):
    '''
    Utility function for concise plotting of examples.
    '''
    fig, axes = plt.subplots(1, len(sigmas), figsize=[len(sigmas)*4, 3])

    # Compute the derivative
    res = diff_method.d(np.vstack([data_f(t, s) for s in sigmas]), t)
    for i, s in enumerate(sigmas):
        axes[i].plot(t, res[i])
        axes[i].plot(t, res_f(t))
        axes[i].set_title("Noise: $\sigma$={}".format(s))
    if y_label:
        axes[0].set_ylabel(y_label, fontsize=12)

Usage

There are two ways to interact with the code.

t = np.linspace(0, 2, 50)
x = np.sin(2*np.pi*t)

The first way is to do a specific import of the desired Derivative object.

from derivative import FiniteDifference

fig,ax = plt.subplots(1, figsize=[5,3])
kind = FiniteDifference(k=1)

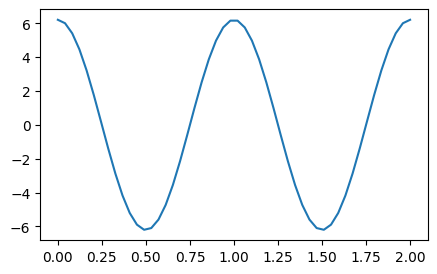

ax.plot(t, kind.d(x,t))

[<matplotlib.lines.Line2D at 0x7f440afaeb50>]

The second way is top use the functional interface and pass the kind of derivative as an argument.

# Use the functional interface and pass the kind as an argument
from derivative import dxdt

fig,ax = plt.subplots(1, figsize=[5,3])
ax.plot(t, dxdt(x, t, "finite_difference", k=1))

[<matplotlib.lines.Line2D at 0x7f440aeae0d0>]

Examples

Smooth Derivative

The first example is a sine function with Gaussian noise.

def noisy_sin(t, sigma):
    '''Sine with gaussian noise.'''
    np.random.seed(17)
    return np.sin(t) + np.random.normal(loc=0, scale=sigma, size=t.shape)

sigmas = [0, 0.01, 0.1]
fig, ax = plt.subplots(1, len(sigmas), figsize=[len(sigmas)*4, 3])

t = np.linspace(0, 2*np.pi, 50)
for axs, s in zip(ax, sigmas):
    axs.scatter(t, noisy_sin(t, s))
    axs.set_title("Noise: $\sigma$={}".format(s))

Finite differences

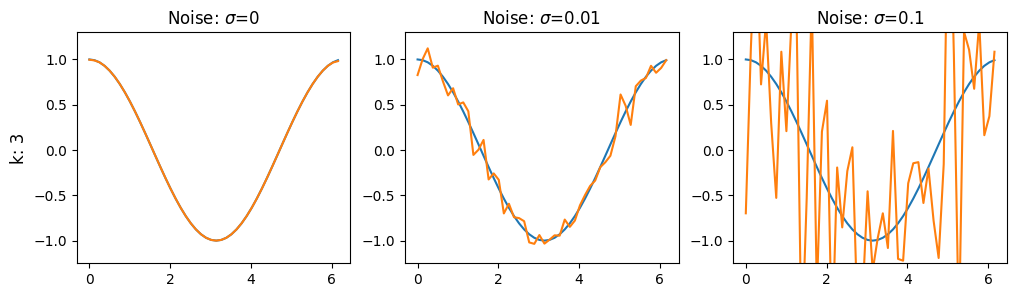

fd = derivative.FiniteDifference(3)
plot_example(fd, t, noisy_sin, np.cos, sigmas, 'k: 3')

Savitzky-Golay filter

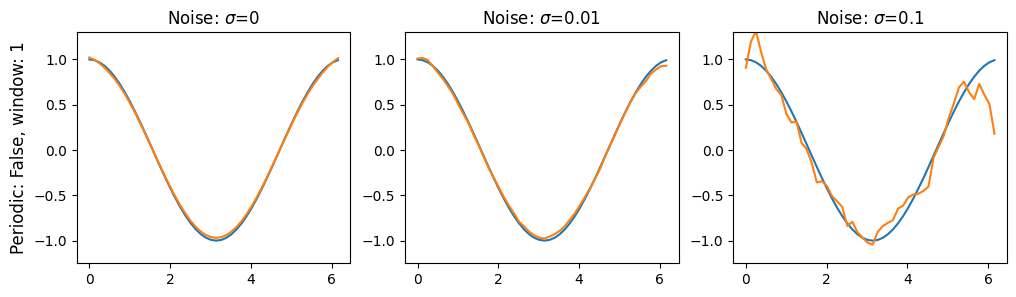

sg = derivative.SavitzkyGolay(left=.5, right=.5, order=2, periodic=False)
plot_example(sg, t, noisy_sin, np.cos, sigmas, 'Periodic: False, window: 1')

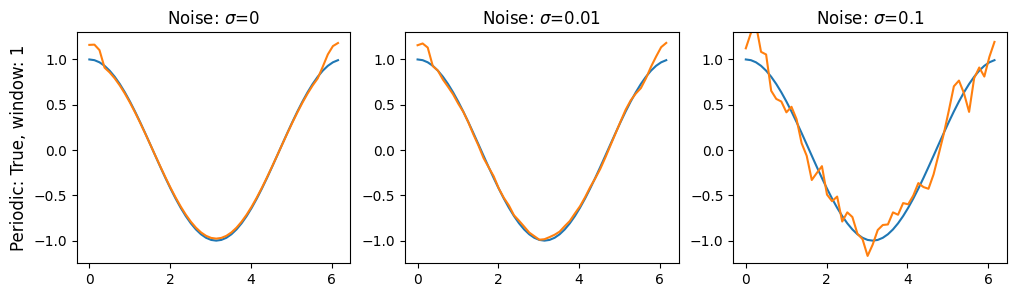

sg = derivative.SavitzkyGolay(left=.5, right=.5, order=2, periodic=True)
plot_example(sg, t, noisy_sin, np.cos, sigmas, 'Periodic: True, window: 1')

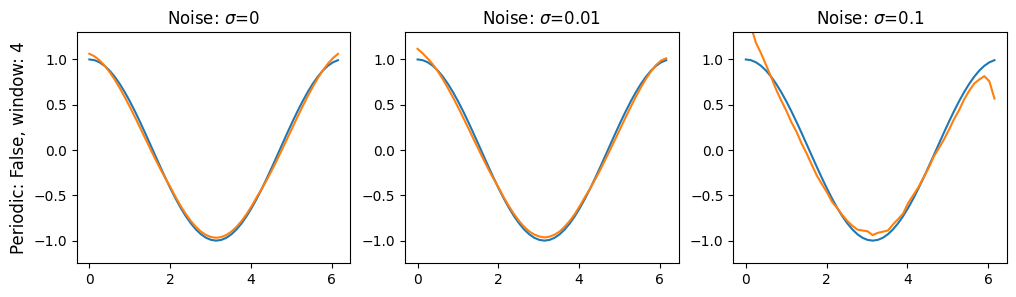

sg = derivative.SavitzkyGolay(left=2, right=2, order=3, periodic=False)
plot_example(sg, t, noisy_sin, np.cos, sigmas, 'Periodic: False, window: 4')

sg = derivative.SavitzkyGolay(left=2, right=2, order=3, periodic=True)

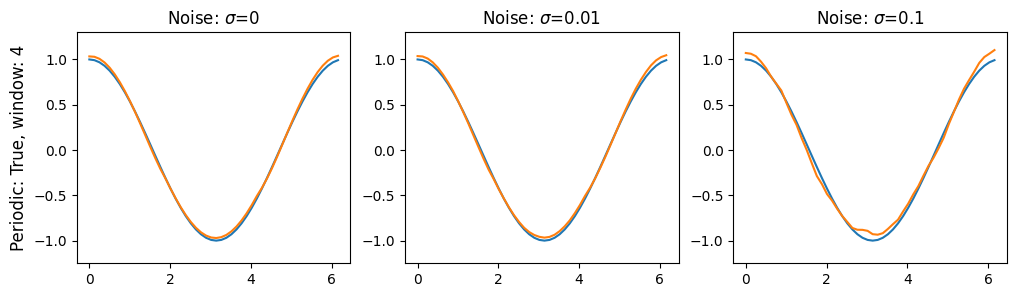

plot_example(sg, t, noisy_sin, np.cos, sigmas, 'Periodic: True, window: 4')

Splines

spl = derivative.Spline(.5)

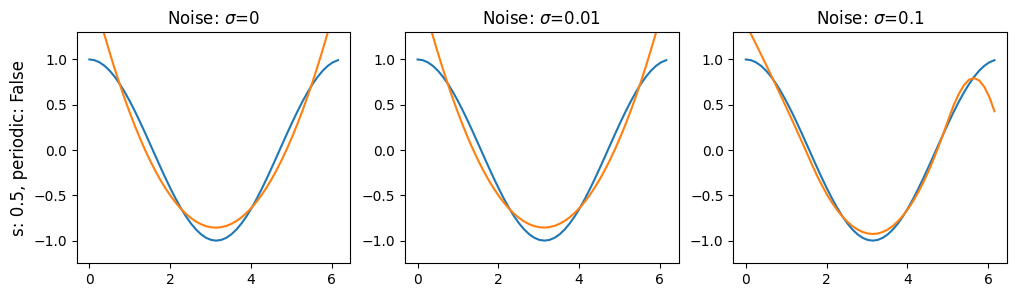

plot_example(spl, t, noisy_sin, np.cos, sigmas, 's: 0.5, periodic: False')
spl = derivative.Spline(.5, periodic=True)

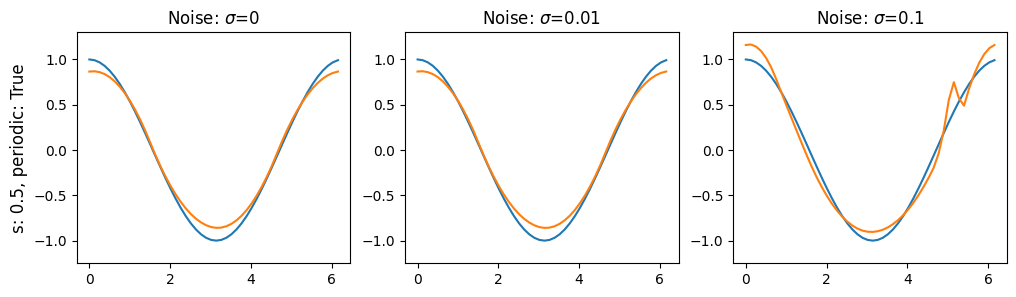

plot_example(spl, t, noisy_sin, np.cos, sigmas, 's: 0.5, periodic: True')
spl = derivative.Spline(1, periodic=True)

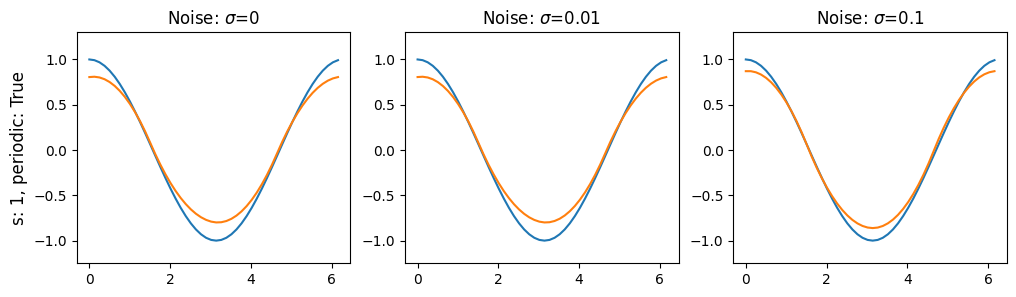

plot_example(spl, t, noisy_sin, np.cos, sigmas, 's: 1, periodic: True')

Spectral method

Add your own filter!

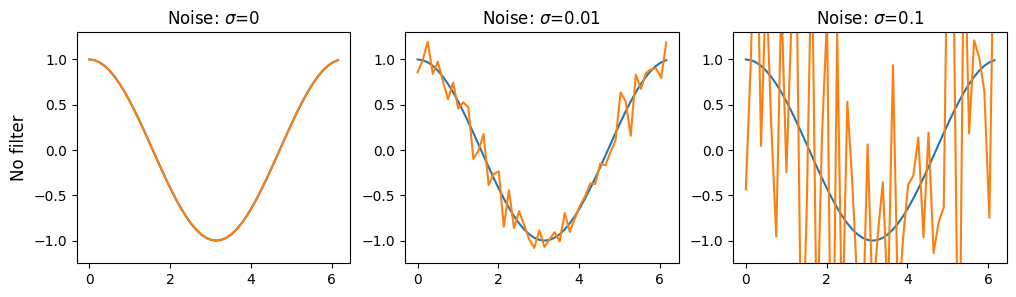

no_filter =  derivative.Spectral()
yes_filter = derivative.Spectral(filter=np.vectorize(lambda f: 1 if abs(f) < 0.5 else 0))

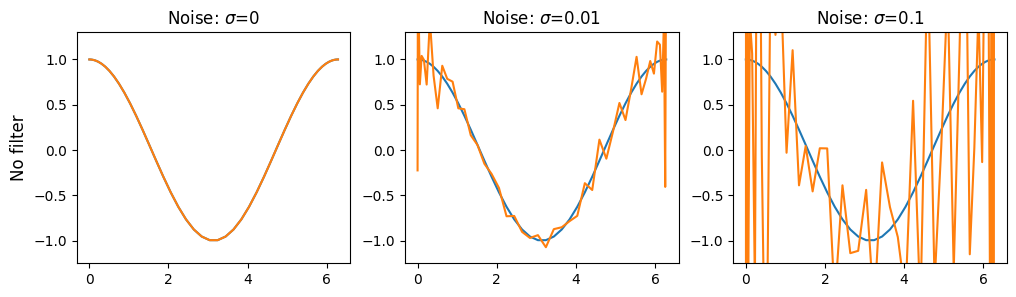

plot_example(no_filter, t, noisy_sin, np.cos, sigmas, 'No filter')

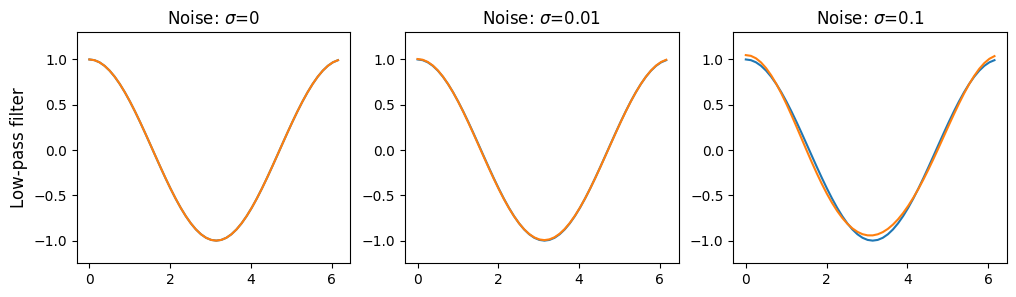

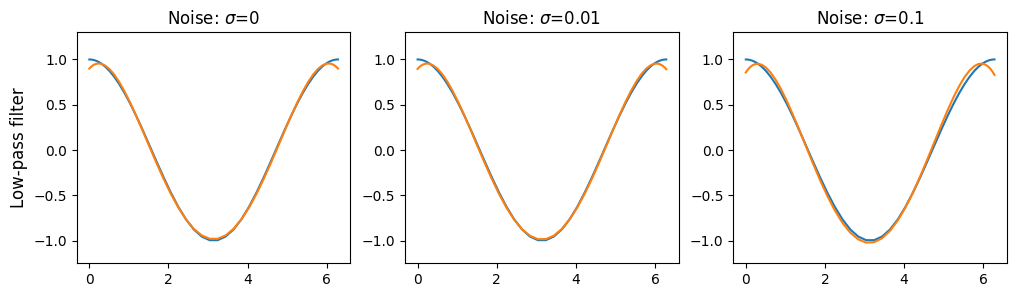

plot_example(yes_filter, t, noisy_sin, np.cos, sigmas, 'Low-pass filter')

Trend-filtered

tvd =  derivative.TrendFiltered(alpha=1e-3, order=0, max_iter=1e6)

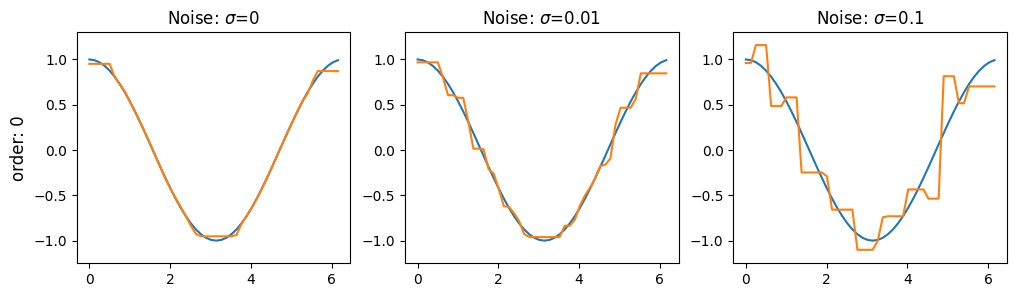

plot_example(tvd, t, noisy_sin, np.cos, sigmas, 'order: 0')

tvd =  derivative.TrendFiltered(alpha=1e-3, order=1, max_iter=1e6)

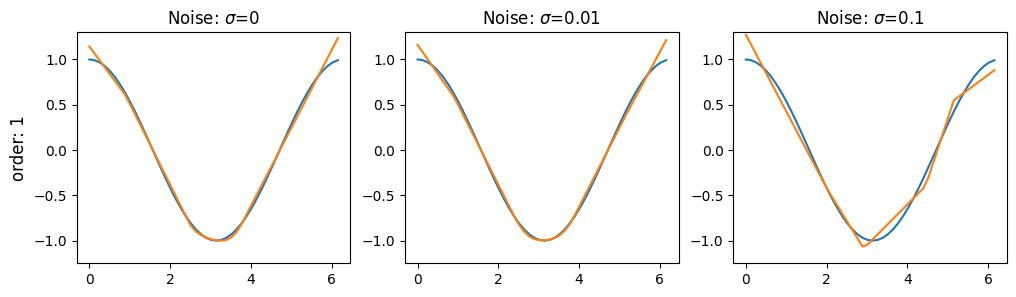

plot_example(tvd, t, noisy_sin, np.cos, sigmas, 'order: 1')

tvd =  derivative.TrendFiltered(alpha=1e-3, order=2, max_iter=1e6)

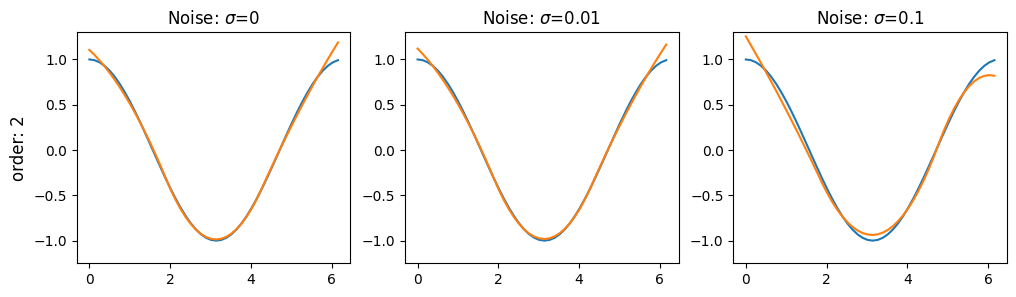

plot_example(tvd, t, noisy_sin, np.cos, sigmas, 'order: 2')

Kalman smoothing

kal =  derivative.Kalman(alpha=0.01)

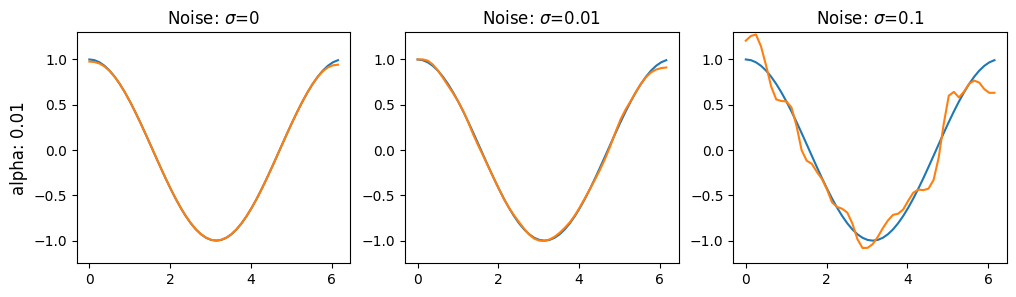

plot_example(kal, t, noisy_sin, np.cos, sigmas, 'alpha: 0.01')

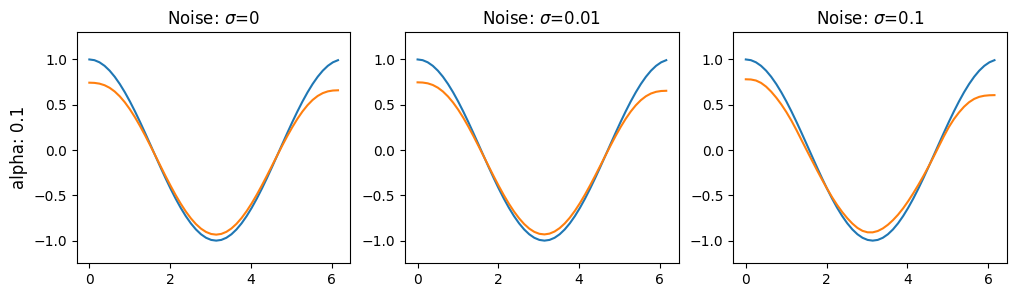

kal =  derivative.Kalman(alpha=0.5)
plot_example(kal, t, noisy_sin, np.cos, sigmas, 'alpha: 0.1')

kal =  derivative.Kalman(alpha=1)

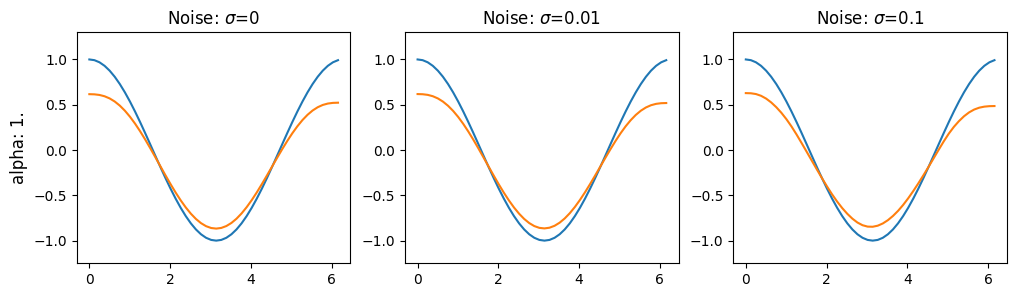

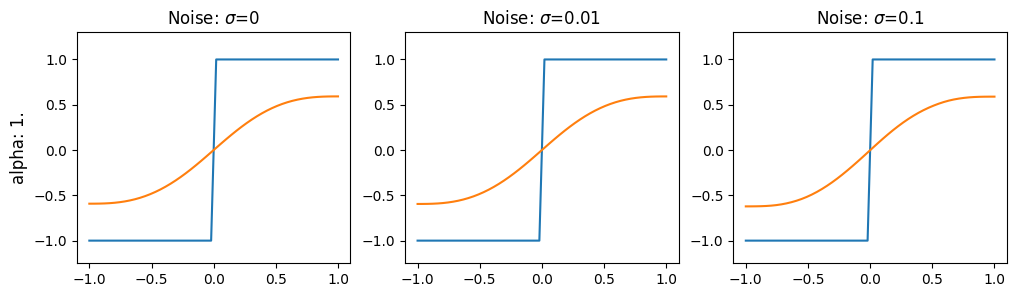

plot_example(kal, t, noisy_sin, np.cos, sigmas, 'alpha: 1.')

Jump Derivative

The second example is the absolute value function with Gaussian noise.

def noisy_abs(t, sigma):
    '''Sine with gaussian noise.'''
    np.random.seed(17)
    return np.abs(t) + np.random.normal(loc=0, scale=sigma, size=x.shape)

d_abs = lambda t: t/abs(t)

sigmas = [0, 0.01, 0.1]
fig, ax = plt.subplots(1, len(sigmas), figsize=[len(sigmas)*4, 3])

t = np.linspace(-1, 1, 50)
for axs, s in zip(ax, sigmas):

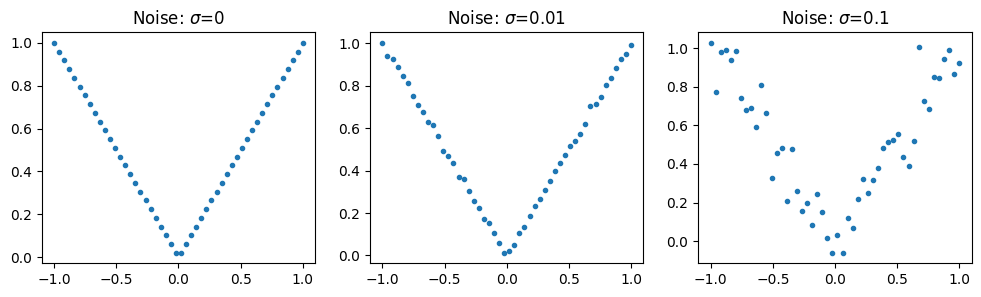

    axs.scatter(t, noisy_abs(t, s))
    axs.set_title("Noise: $\sigma$={}".format(s))

Finite differences

fd = derivative.FiniteDifference(k=3)

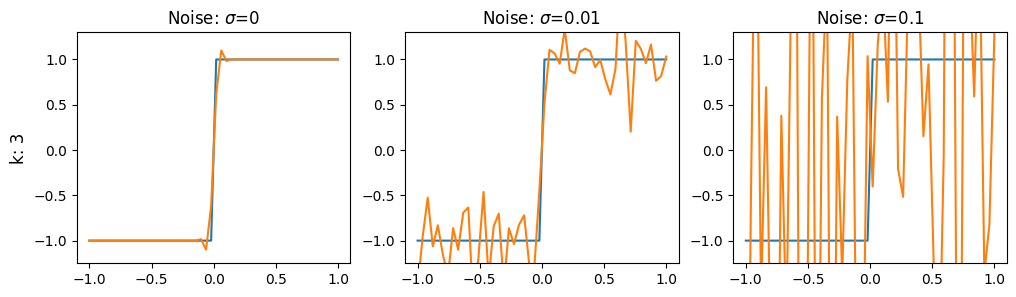

plot_example(fd, t, noisy_abs, d_abs, sigmas, 'k: 3')

Savitzky-Galoy filter

sg = derivative.SavitzkyGolay(left=.125, right=.125, order=2, periodic=True, T=2)

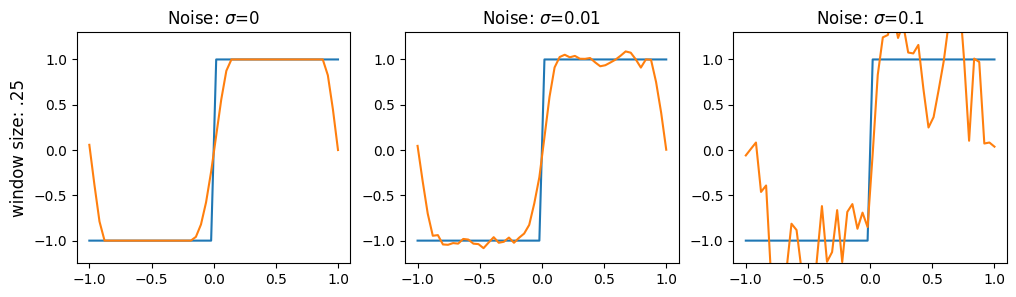

plot_example(sg, t, noisy_abs, d_abs, sigmas, 'window size: .25')

sg = derivative.SavitzkyGolay(left=.25, right=.25, order=3, periodic=True, T=2)

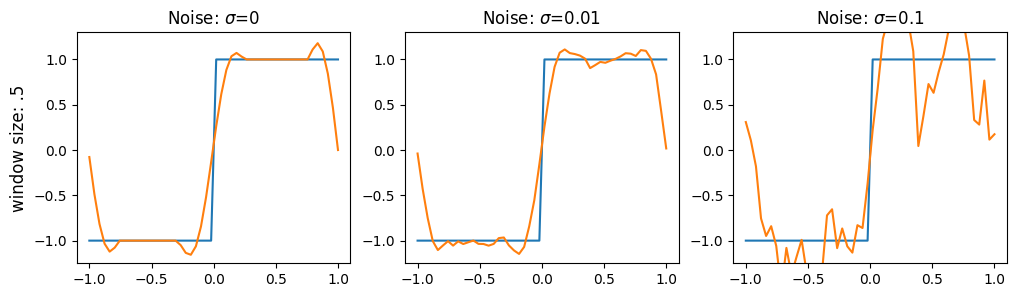

plot_example(sg, t, noisy_abs, d_abs, sigmas, 'window size: .5')

Splines

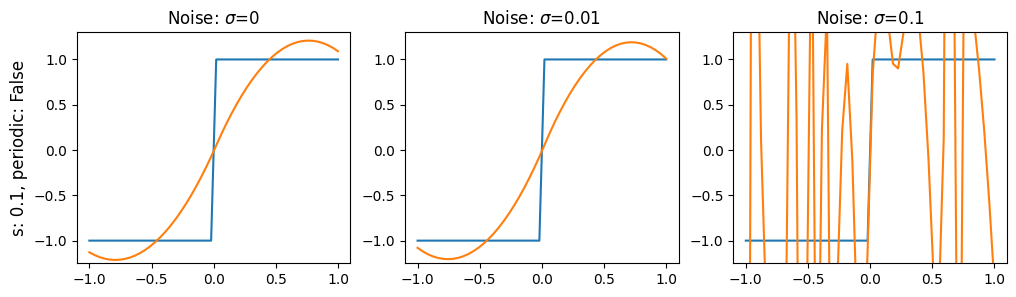

spl = derivative.Spline(.1, periodic=False)
plot_example(spl, t, noisy_abs, d_abs, sigmas, 's: 0.1, periodic: False')

Spectral Method

no_filter =  derivative.Spectral()
yes_filter = derivative.Spectral(filter=np.vectorize(lambda f: 1 if abs(f) < 1 else 0))

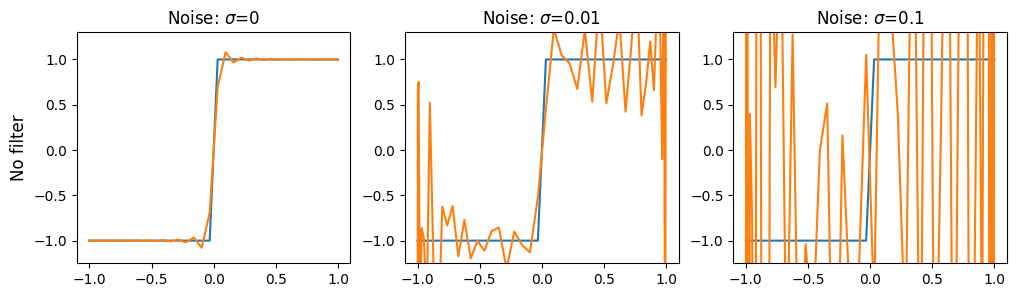

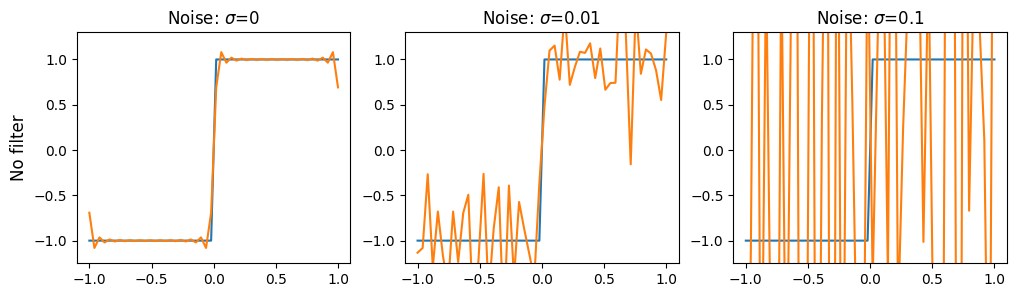

plot_example(no_filter, t, noisy_abs, d_abs, sigmas, 'No filter')

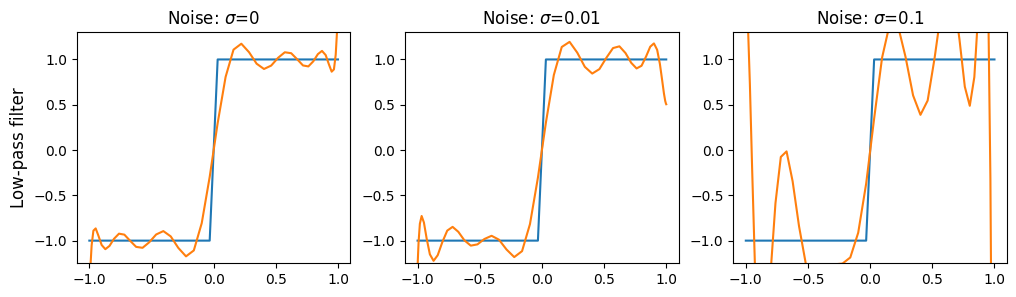

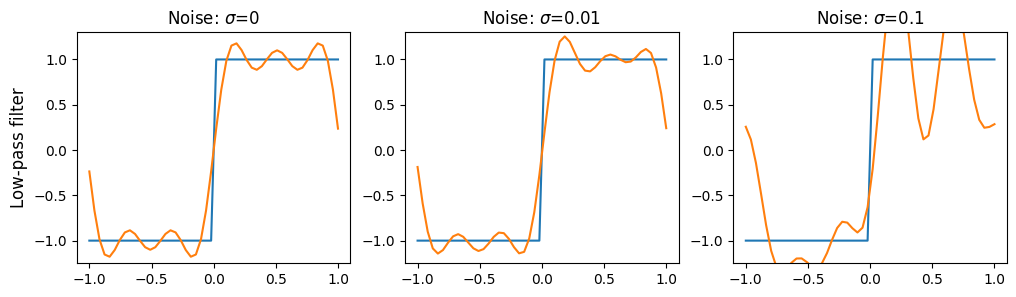

plot_example(yes_filter, t, noisy_abs, d_abs, sigmas, 'Low-pass filter')

Trend-filtered

tvd =  derivative.TrendFiltered(alpha=1e-3, order=0, max_iter=1e5)

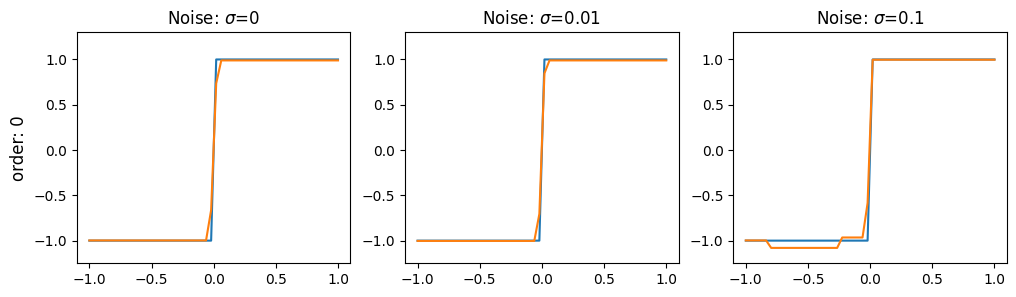

plot_example(tvd, t, noisy_abs, d_abs, sigmas, 'order: 0')

Kalman smoothing

kal =  derivative.Kalman(alpha=0.01)

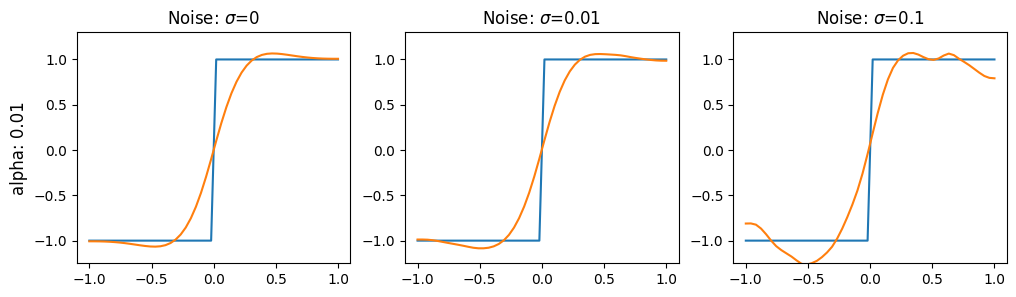

plot_example(kal, t, noisy_abs, d_abs, sigmas, 'alpha: 0.01')

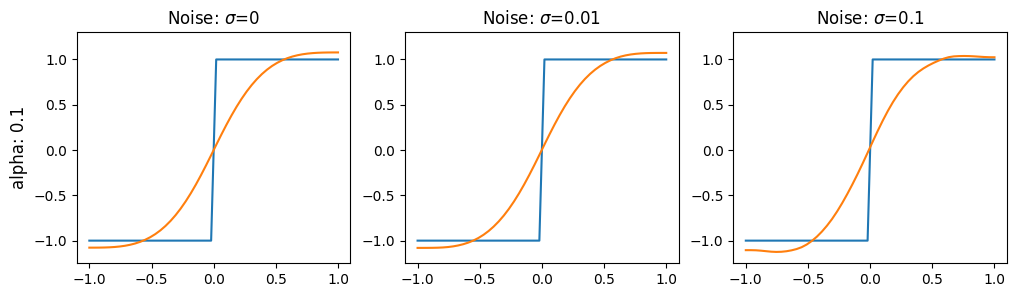

kal =  derivative.Kalman(alpha=0.1)
plot_example(kal, t, noisy_abs, d_abs, sigmas, 'alpha: 0.1')

kal =  derivative.Kalman(alpha=1.)
plot_example(kal, t, noisy_abs, d_abs, sigmas, 'alpha: 1.')
